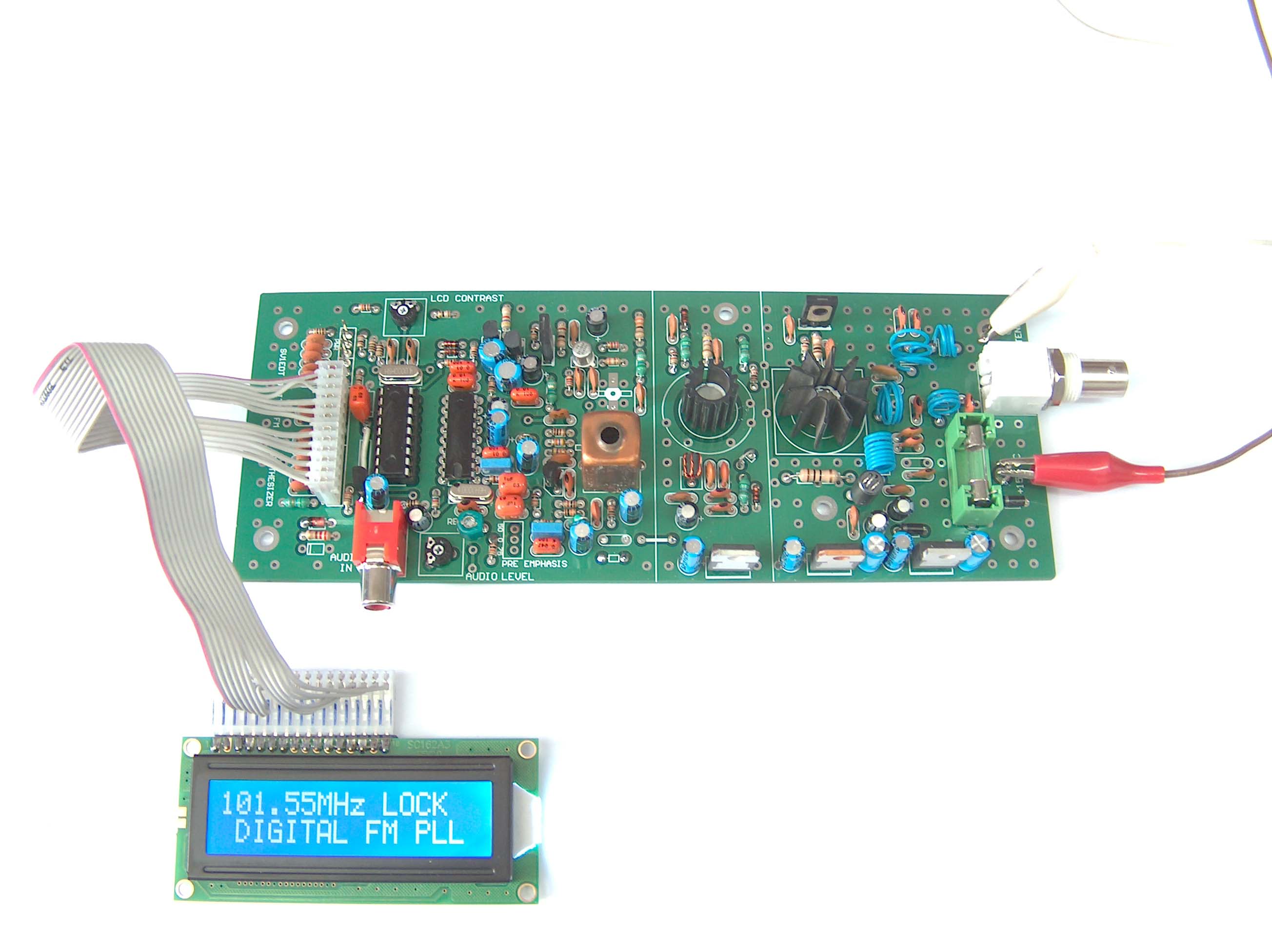

Specification The New high quality mono FM transmitter which operates in the commercial FM broadcast band. The frequency is programmable from 85.9-109.9 MHz. The MAX-1 includes an adjustable 1-5 watt RF power output and an LCD frequency display which also provides important tuning and diagnostic information. Frequency Response 20 Hz -15 KHz Stereo Input 20Hz - 90 KHz Frequency Range 85.9 - 109.9 (PLL) RF Output Connector 50 Ohm, BNC Stability 0.001% RF Output Power 1-5 Watts typical Spurious Rejection 60 dB Minimum Harmonic Distortion 0.05% Max. PCB Dimensions 4.25" x 3.5" LCD Display Included Power Supply 10-12 VoltsDC @2A
